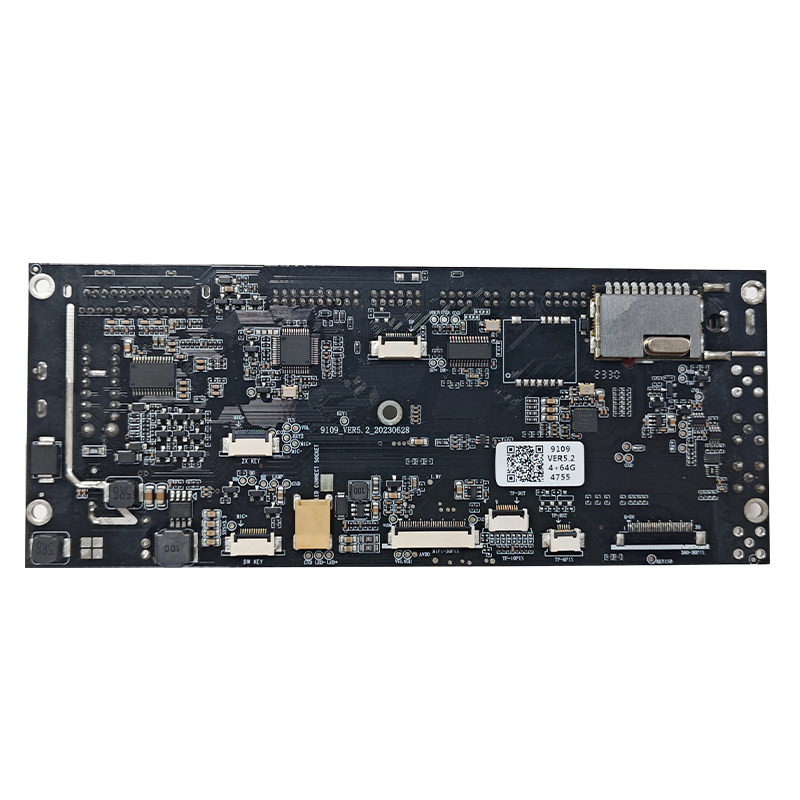

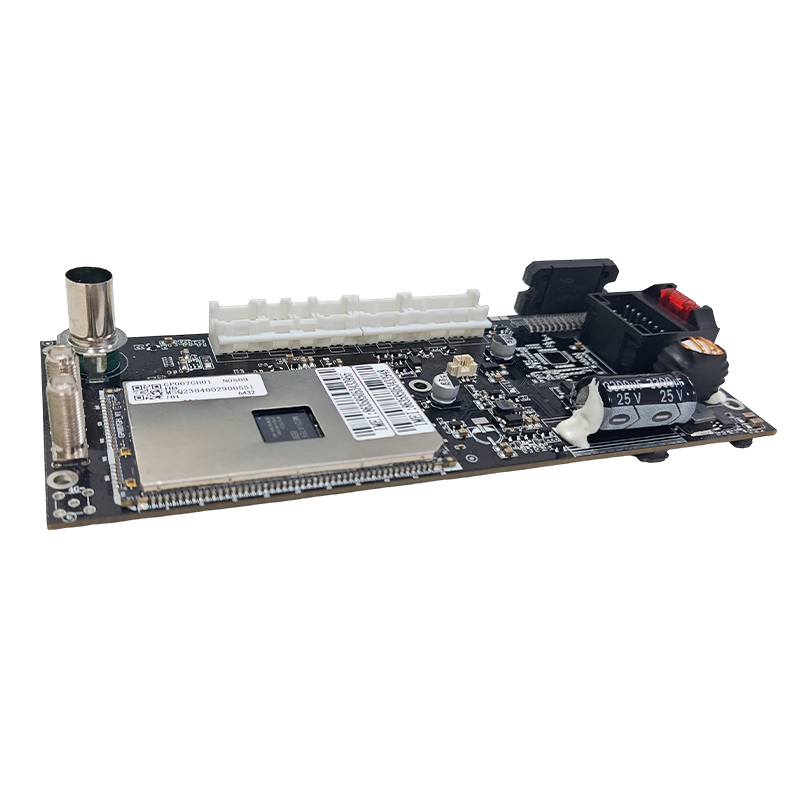

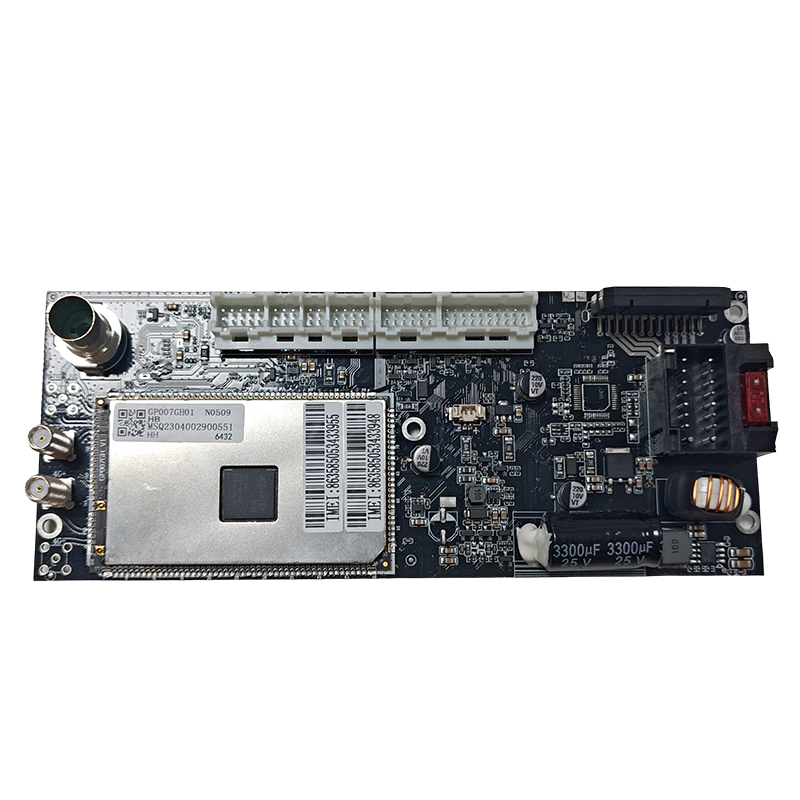

Car Navigation 9109 Public Version

9109-4G-ASP
9109-4G-ASP is a 4G full network access, 8-core high-performance car central control large-screen navigation Android solution developed based on the MTK6765 main chip, with built-in Bluetooth 5.0, WIFI2.4G/5G, GPS, etc., the CPU has 8 A53 cores, the main frequency is up to 2.2 GHz, the running score is 10W+, and it uses a 12nm process with lower power consumption, it runs Android 10.0 and can be upgraded to Android 13.0/14.0, with a variety of memory configurations, optional 2/4/6GB, and optional 32/64/128GB storage, the display supports up to 2K screen, supports front view, AUX, and reversing HD camera input, built-in soft DSP, 32-band EQ adjustment, 4.1-channel RCA output, and the amplifier output is 4*25W, the radio can be selected from 8035/4745/4755/7708, etc., supports carplay wireless connection, wired/wireless Android auto connection, built-in fan, support temperature control automatic start and stop, support rear 3-way USB2.0, front USB2.0, front and rear AUX audio input, external MIC input, reserved 1 SD card interface, support colorful lights, double knobs, double panel buttons, square control self-learning, reversing, handbrake, headlight detection, etc., optional 360 panoramic view, support Global Network, external SIM card, the tail line adopts the public interface definition, compatible with most car models on the market CAN protocol.
